The PPR-C Advantage
PPR-C stands for "Polypropylene Random Copolymer", which is the key to the exceptional performance of TRUFLO PPR-C pipes. These are a winning combination of high temperature resistance, corrosion resistance, durability, and lightweight design. This combination makes them a go-to choice for applications like:
- Residential, commercial, and industrial plumbing systems for extreme hot and cold water distribution
- Heating systems including radiator connections, underfloor heating, and district heating
- Industrial piping systems for various applications like chemical processing, food & beverage, and pharmaceutical industries
- Water treatment plants
PRODUCT HIGHLIGHTS
- Ideal for extreme Hot & Cold Water Application.
- Suitable for High Pressure Lines.
- Withstands temperature range from -10°C to 95°C.
- Low Thermal Conductivity 0.24 W/mK.
- Hygienic & Low Bacterial Growth.
- Smooth Internal surface - no frictional losses
- Anti Corrosive & Chemical Resistance.
TRUFLO Trutherm PPR-C Edge
For the discerning consumers and applications demanding higher efficiency and enhanced functionality Truflo's Trutherm PPR-C pipes are ideal choice. These pipes are designed with high enduring fiber reinforcement and UV resistance. The middle layer is mechanically stabilized with a fibertherm mix, while the outer layer is UV-resistant. The inner layer is made of PPR food-grade material.
ADVANTAGES
- 4x lower linear thermal expansion.
- 25% higher pressure capacity than normal PPR-C pipes.
- 25% increased flow rate.
- 20% reduced passive heat loss for non-insulated pipes.
*Available Sizes: 20mm, 25mm, 32mm, 40mm, 50mm
| Green Triple Layer | White Mono Layer | White Triple Layer TRUtherm |
|---|---|---|
| 20mm (1/2") to 50mm (2") | 20mm (1/2") to 50mm (2") | 20mm (1/2") to 50mm (2") |
| PN 16 & PN 20 | PN 16 & PN 20 | PN 20 |
Working Pressure
| TEMP. | SERVICE LIFE | PIPE SERIES | ||
|---|---|---|---|---|
| SDR 11 PN-IO | SDR 7.4 PN-16 | SDR6 PN-20 | ||
| 0° C | Yrs. | ALLOWABLE WORKING PRESSURE | ||
| 10° C | 50 | 8.2 | 28.8 | 36.3 |
100 | 17.7 | 28.1 | 35.4 | |
| 20° C | 50 | 15.5 | 24.5 | 30.9 |
100 | 15 | 23.8 | 29.9 | |
| 30° C | 50 | 13.1 | 20.7 | 26.1 |
100 | 12.8 | 20.2 | 25.5 | |
| 40° C | 50 | 11 | 17.5 | 22 |
100 | 10.7 | 16.9 | 21.3 | |
| 50° C | 50 | 9.3 | 14.7 | 18.5 |
100 | 8.9 | 14.2 | 17.8 | |
| 60° C | 25 | 8 | 12.6 | 15.9 |
50 | 7.7 | 12.1 | 15.3 | |
| 70° C | 25 | 6.1 | 9.6 | 12.1 |
50 | 5.1 | 8.1 | 10.2 | |
| 80° C | 10 | 4.8 | 7.6 | 9.6 |
25 | 3.8 | 6.1 | 7.6 | |
| 90° C | 5 | 3 | 4.8 | 6.1 |
10 | 2.6 | 4 | 5.1 | |
3 STEP INSTALLATION
Cut & Clean
Measure and cut the pipe at right angle using PPR pipe cuer & clean the burr with fine cloth before heating.

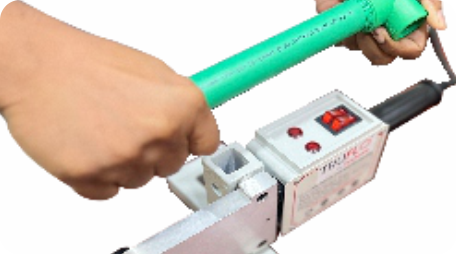

Heat
Attach the dies, to the heating panel of welding machine, according to the size of the pipes and fittings to be welded. Set the machine temp to 260° C. Insert the pipe & fitting into the respective die sockets and heat both components.
Weld
Post heating, immediately insert pipe into the fitting by applying light pressure and hold for few seconds for leak-proof welded joint.
