PVC Pressure Pipes & Fittings
Highlight of the Products
- Smooth internal surface
- Hygienic and odour free
- Chemical resistance
- No corrosion
- Maintainance-free
- Long life
- Economical
- Pipes Manufactured as per IS:4985:2000, and Fittings as per IS:7834:1987
- Feilds of application:
- Irrigation
- Water supply
- Industrial Process lines
- Swimming pools
- Agriculture
Product Availability and Standards

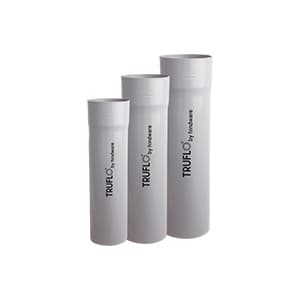

TRUFLO by Hindware offers a wide range of PVC pressure pipes and fittings, manufactured as per IS 4985:2000 standards. Availability of sizes as per the table below.
| VARIANTS | SIZES AVAILABLE | PIPE | FITTINGS |
|---|---|---|---|
| Pressure class 4 kg/cm2 | 63mm, 75mm, 90mm, 110mm, 140mm, 160mm, 180mm, 200mm, 250mm, 280mm, 315mm | IS:4985:2000 | IS:7834:1987 |
| Pressure class 6 kg/cm2 | 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 140mm, 160mm, 180mm, 200mm, 250mm, 280mm, 315mm | IS:4985:2000 | IS:7834:1987 |
| Pressure class 10 kg/cm2 | 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, 140mm, 160mm, 180mm, 200mm, 250mm, 280mm | IS:4985:2000 | IS:7834:1987 |
| Heavy pressure plumbing pipe | 20mm, 25mm, 32mm, 40mm, 50mm | IS:4985:2000 | IS:7834:1987 |
The TRUFLO PVC pipes and fittings can be used for a variety of applications like, irrigation, water supply, industrial process lines, swimming pools, firefighting mains, etc. This piping system is far better than CI, DI or RCC pipes, as it is light in weight, quick and easy to install, has excellent corrosion and chemical resistance properties, high flow rates, long life and economy.
Advantages
- Odourless and hygienic- These pipes are suitable for transportation of potable water as it does not allow any contamination in water.
- High corrosion resistance- This piping system is resistant to chemical corrosion, which gives these pipes much longer life.
- High chemical resistance- Pipes offer excellent resistance to acids, oxidizing agents, alkalis, oils and domestic effluents. There is no need for repeated painting or coating for surface protection.
- Smooth bore- Pipes have a smooth inner surface, resulting in a better flow compared to Cement, CI and GI pipes
- Self-extinguishing quality- Does not support combustion.
- Long life- As these pipes are free from scale formation, rusting, weathering and chemical action, this results in a much longer life.
- Economical- Light weight piping system, very easy to transport, install and highly economical compared to conventional piping systems.

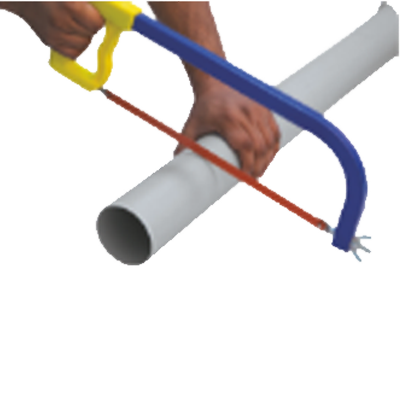

CUTTING

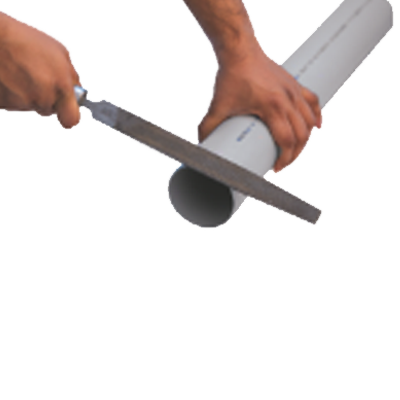

De-Burring
Cleaning/Dry
Solvent Cementing

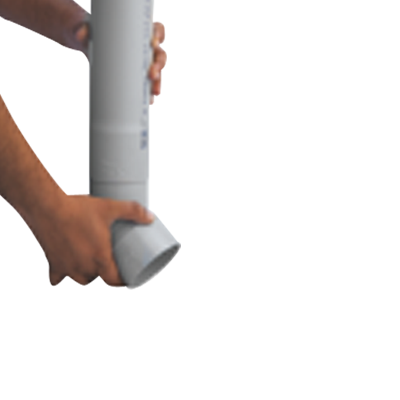

Assembly
| COLOUR CODING (PRINTING ON PIPES) | |||
|---|---|---|---|
| Pressure Rating | Class | Colour | Image |
| 4 kg | 2 | Blue strip |  |
| 6 kg | 3 | Green strip | |
| 10 kg | 5 | Yellow strip | |
| Heavy Pressure Plumbing | Pink strip | ||
CPVC plumbing system for hot & cold water
CPVC Pipes - HSN Code 3917
SDR 11/SDR 13.5 Pipes Manufactured as per is15778:2007
4 kgf/cm2 (6Mtr.Length) 20ft
6 kgf/cm2 (6Mtr.Length) 20ft
10 kgf/cm2 (6Mtr.Length) 20ft
Heavy Pressure Plumbing Pipe (6Mtr.Length) 20 ft
CPVC Fittings
HSN CODE:3917
Fittings Manufactured as per ASTM D2846:2007

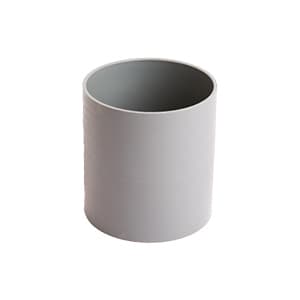

Coupler - 10 kgf/cm2 Pressure - ISI Marked
Coupler - 6 kgf/cm2 Pressure - ISI Marked

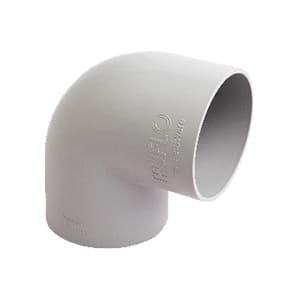

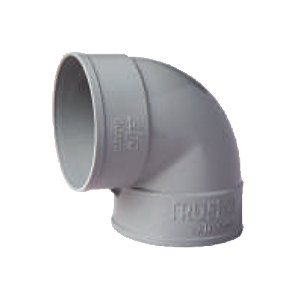

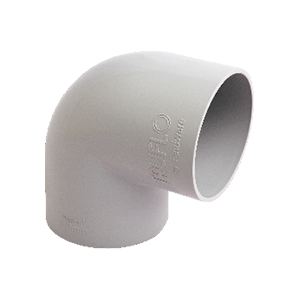

Elbow 90° PLAIN - 10 kgf/cm2 Pressure - ISI Marked
Elbow 90° PLAIN - 6 kgf/cm2 Pressure - ISI Marked
ELBOW 90° PLAIN - NOVA (PN 4)

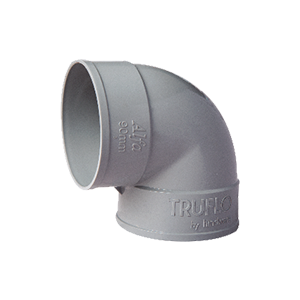

ELBOW 90° PLAIN - ALFA

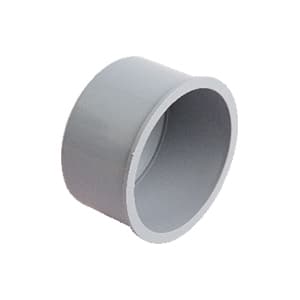

End Cap Plain - 10 kgf/cm2 Pressure
End Cap Plain - 6 kgf/cm2 Pressure

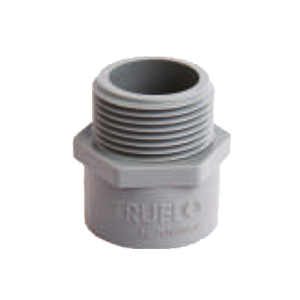

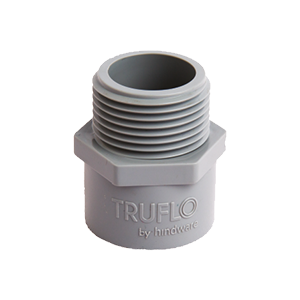

Male Threaded Adaptor - Heavy

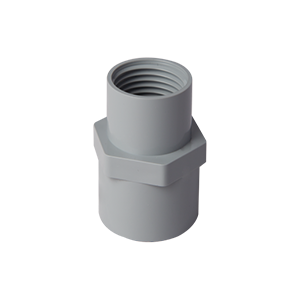

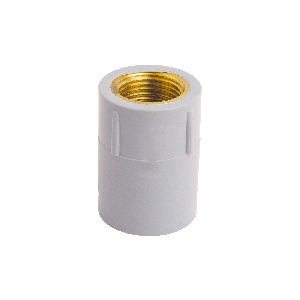

Female Threaded Adaptor - Heavy
Male Threaded Reducing Adaptor - Heavy
Female Threaded Reducing Adaptor - Heavy

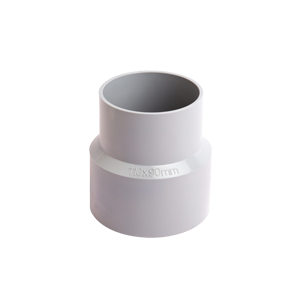

Reducer - Heavy

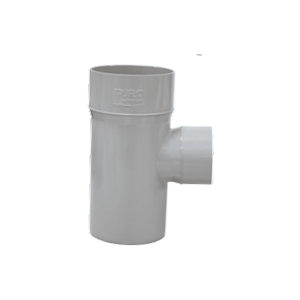

Reducer Tee - Heavy
Reducing Bush - Heavy
Reducing Tthreaded Elbow - Heavy
Reducing Tthreaded Tee - Heavy

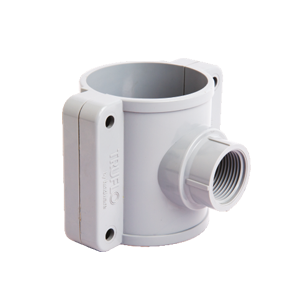

Service Saddle

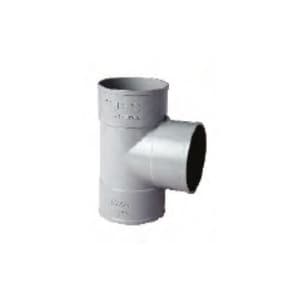

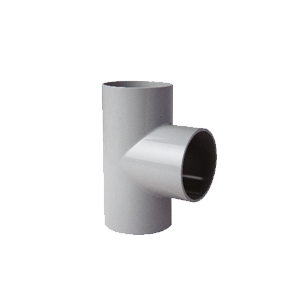

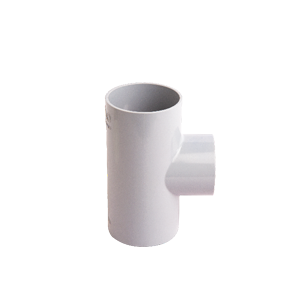

Tee 90° Plain - 10 kgf/cm2 Pressure - ISI Marked
Tee 90° Plain - 6 kgf/cm2 Pressure - ISI Marked
Tee 90° Plain - Nova (PN 4)
Tee 90° Plain - Alfa

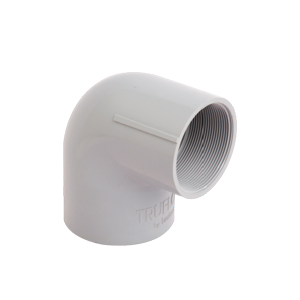

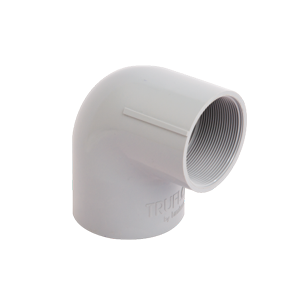

Threded Elbow - Heavy

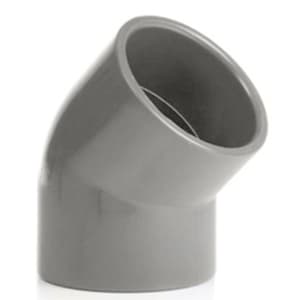

Bend 45° - 10 kgf/cm2 Pressure – ISI Marked
Bend 45° - 6 kgf/cm2 Pressure – ISI Marked
Union -10 kgf/cm2 Pressure – ISI Marked

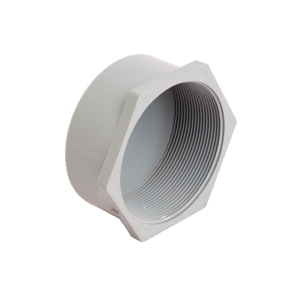

Threaded End Cap - Heavy

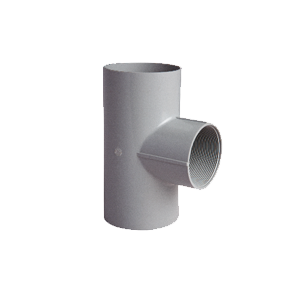

Threaded Tee - Heavy
CPVC Fittings
BRASS - HSN CODE:3917

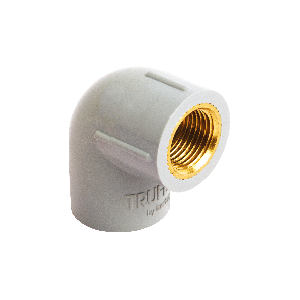

Elbow - PN 16 (Brass)
Female Threaded Adapter (FTA) - PN 16 (Brass)
Tee - PN 16 (Brass)
CPVC Fittings

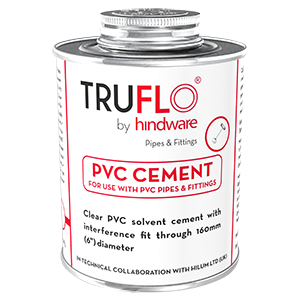

COMMON
Clear – Regular
Grey – High Pressure
Truflo PVC Plumbing System
Truflo is a leading PVC plastic pipes manufacturers in India, and their PVC pipes have been used for pressure applications for a long time. Today, PVC pressure systems are used for a wide range of applications such as distributing drinking water, recycled water, sewage and gas. Truflo prides itself on manufacturing a complete range of quality PVC pressure pipes, PVC fittings, using only the finest raw materials and best practices within the industry pertaining to the set industrial limits, for all your pipe system requirements. The complete range of products goes through stringent testing as per the national and international standards to ensure high performance and durability. They are available in a pressure rating of 4, 6, and 10 kgf/cm2. The PVC fittings available are coupler (6 and 10kgf/cm2), elbow 90 plain (6 and 10kgf/cm2), male thread adapter, female thread adapter, elbow 90 plain (Nova and Alfa), male thread reducing adapter, end cap plain (6 and 10kgf/cm2), female thread reducing adapter, reducer, reducing Tthreaded elbow, reducing Tthreaded tee, reducer tee, service saddle, tee 90 plain (6 and 10kgf/cm2), reducing bush, and more. Further, the PVC brass fittings include elbow, tee, female threaded adapter, and more.
We offer a premium range of PVC pressure pipe systems for a wide range of project requirements. PVC pressure pipes are manufactured from PVC resin compounded with lubricants, stabilisers and pigments. The pipes do not contain any plasticisers and thus are widely known as unplasticised PVC or uPVC.
UPVC pipes have been used for pressure applications for a long time. Over time, different industries have understood the very many benefits of PVC for pressure pipes: high strength to weight ratio, material stability, corrosion resistance, ease of handling and installation and extraordinary flow characteristics.
Applications of PVC pressure pipes
PVC pressure pipes are suitable for an array of pressure applications, including pressure sewerage, water supply, irrigation, recycled water, gas and industrial applications. Other applications of Plastic PVC plumbing pipe are coal washing plants, fume extraction ducts, slurry lines, effluent lines, drainage installations for both domestic and industrial purposes, chemical plant installations, surface water drainage, and more.
