About Sharkbite
A premium range of pipes and fittings made to last long and provide superior performance. TRUFLO SharkBite Multilayer Composite Piping Systems are lightweight, durable, yet flexible. They are ideal for premium plumbing in all concealed applications for hot water, drinking water and chilled water.
PRODUCT RANGE
PIPES
Available in sizes (dia.) 16mm, 20mm, 25mm, 32mm
FITTINGS
Available in sizes (dia.) 16mm, 20mm, 25mm, 32mm
Connectors
Elbows
Tees
Couplers
Ball valve
HIGHLIGHT OF THE PRODUCTS
- Strong and lightweight
- Greater concentricity
- Resistant to corrosion & chemical agents
- Resistant to hydrolysis
- Fire resistant
- Leak free joints
- Maximum flow rate
- Resistant to chemical stress cracking
- Backed by hindware trust of 6 decades
- Manufactured as per ISO 21003 & EN 485-2
BENEFITS
Lightweight, slim profile & durable
Push to connect
Highly flexible
Suitable to -20 to 95
High-pressure & temperature resistant
Full oxygen-tight – Prevents Oxidation
THE EASY 3 STEP INSTALLATION..

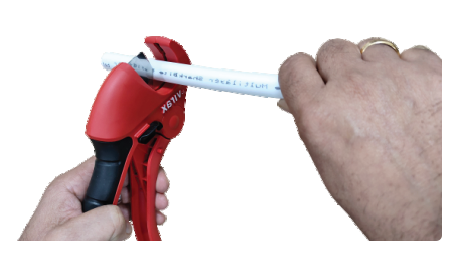

CUT

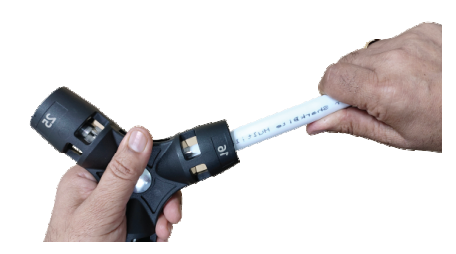

BEVEL & CALIBRATE

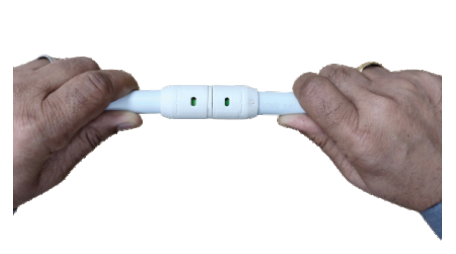

PUSH
MATERIAL SPECIFICATION
Polyethylene raised temperature resistance
(PE-RT) Dowlex 2388 Type II & Aluminium 8006 O - 8011 O
| Technical Parameters (pipe) ⬇ | Sizes ➡ | 16x2.0mm | 20x2.0mm | 25x2.5mm | 32x3.0mm |
|---|---|---|---|---|---|
| Internal diameter (mm) | 12 | 16 | 20 | 26 | |
| Volume of liquid (1/m) | 0.133 | 0.201 | 0.314 | 0.531 | |
| Max. temperature (°C) | 95 | 95 | 95 | 95 | |
| Max. pressure (95° C) | 10bar | 10bar | 10bar | 10bar | |
| Min. bending radius /external spiral spring (mm) | 5xd | 5xd | 5xd | 5xd | |
| Min. bending radius / internal spiral spring (mm) | 4xd | 4xd | 4xd | 4xd | |
| Oxygen diffusion (mg/l) | 0 | 0 | 0 | 0 | |
| Thickness of aluminium (mm) | 0.20 | 0.20 | 0.30 | 0.30 | |
| Pressure at burst (bar) | 72 | 68 | 71 | 65 | |
